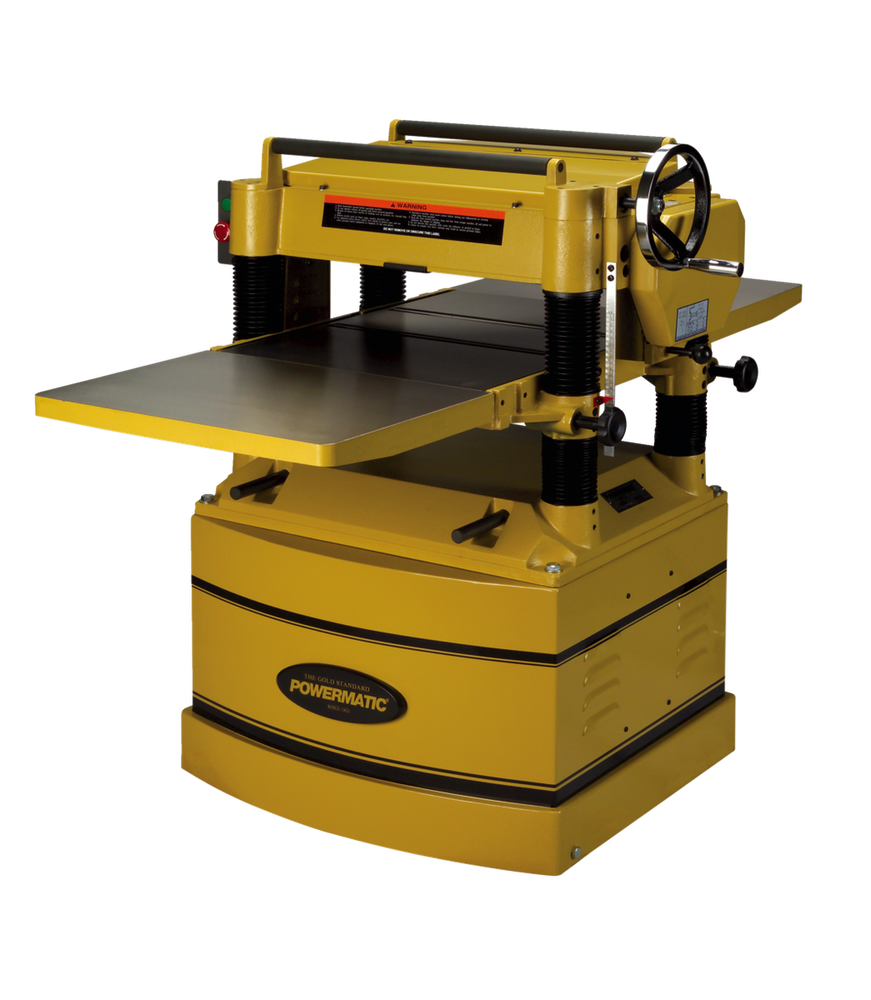

209, 20" Planer, 5HP 3PH 230/460V

Regular price
$5,467.13
Sale price
$5,467.13
Regular price
This heavy duty Planer offers performance and value, loaded with standard features not found on other machines in its class. The powerful 5HP motor and 20" planing capacity will handle...
24 people are viewing this right now
Type: Tools
Vendor:
Sku: PM9-1791297

AvailabilityLow stock 10 left

Shipping & Returns

Free shipping and returns available on all orders!
We ship all US domestic orders within 5-10 business days!

Materials

The item with the Committed label has a lower environmental impact because it was made with sustainable materials or methods. We are committed to creating items that combine sustainability with style. Made with recycled cashmere and industrial by products.

Size Chart

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

209, 20" Planer, 5HP 3PH 230/460V209, 20" Planer, 5HP 3PH 230/460V209, 20" Planer, 5HP 3PH 230/460V209, 20" Planer, 5HP 3PH 230/460V209, 20" Planer, 5HP 3PH 230/460V209, 20" Planer, 5HP 3PH 230/460V209, 20" Planer, 5HP 3PH 230/460V209, 20" Planer, 5HP 3PH 230/460V

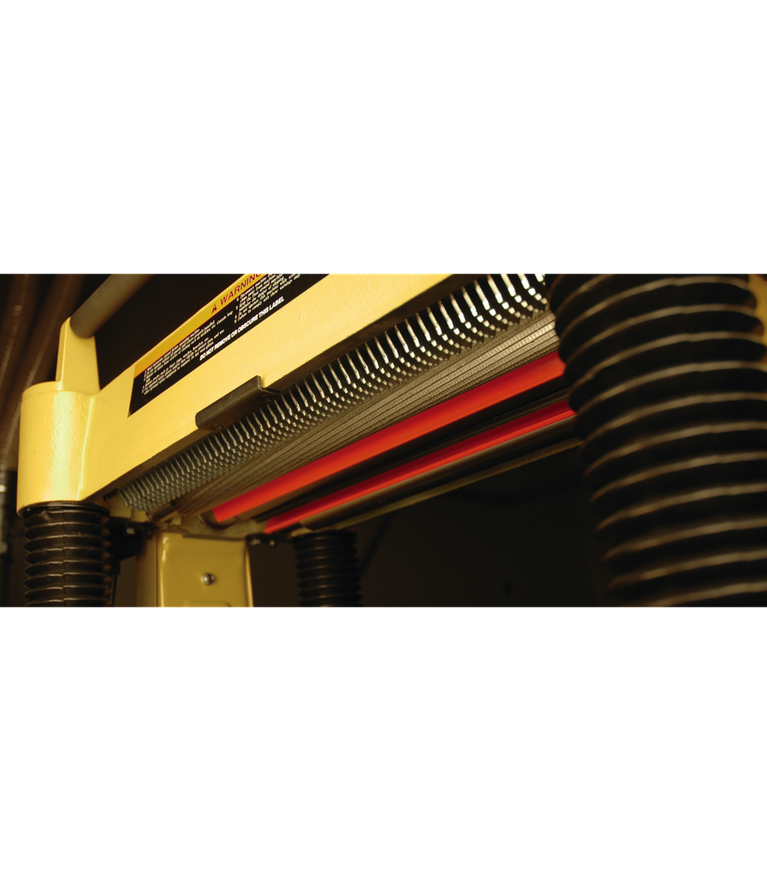

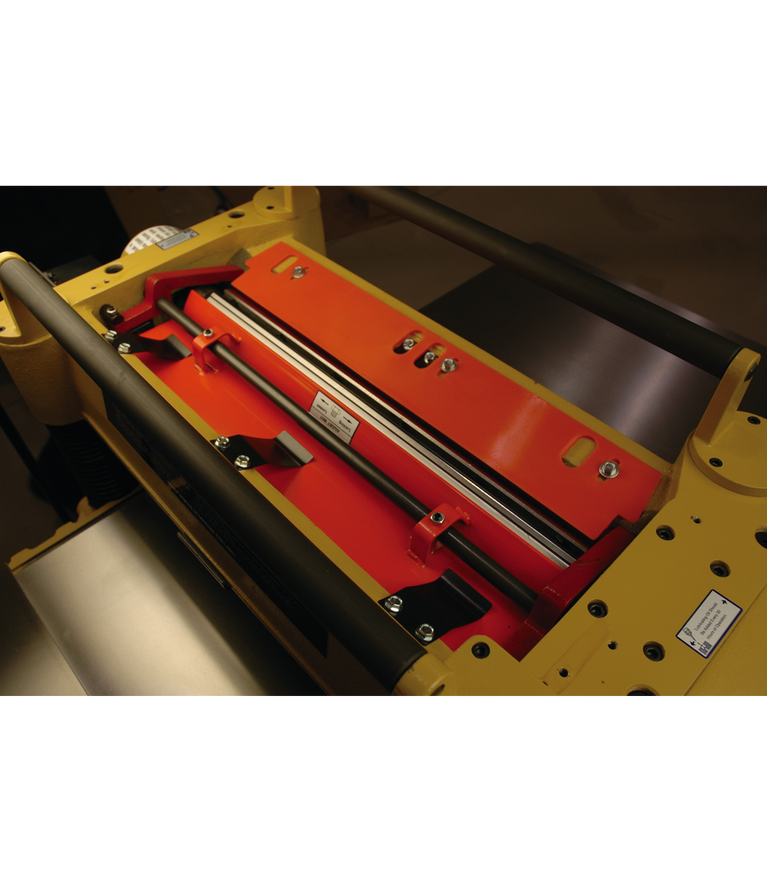

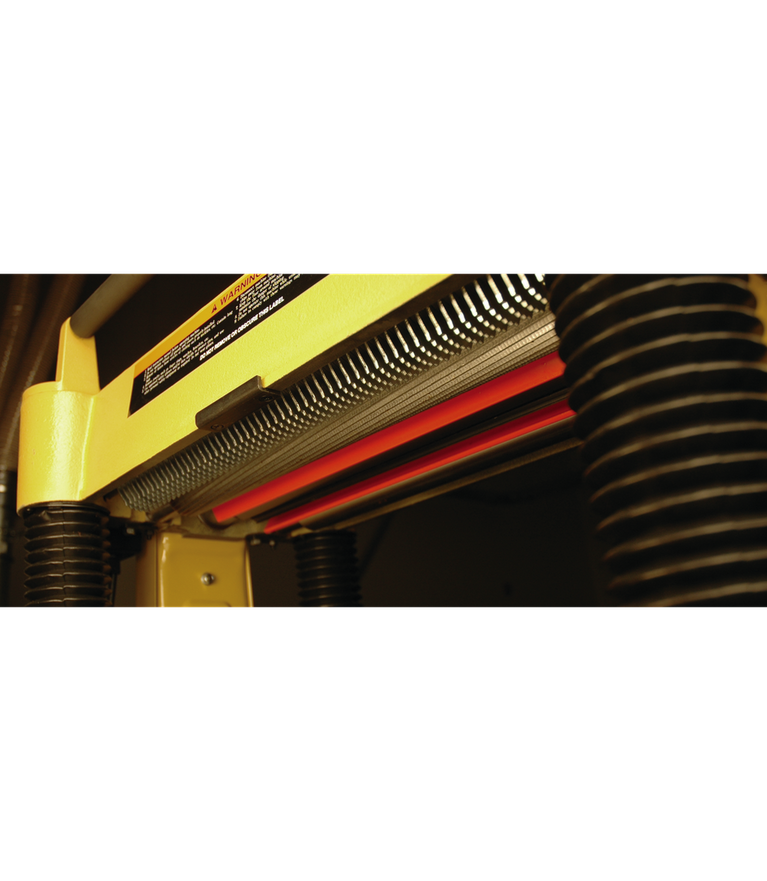

This heavy duty Planer offers performance and value, loaded with standard features not found on other machines in its class. The powerful 5HP motor and 20" planing capacity will handle the most demanding work. The 5" dust port connects easily to any dust collector. The cutterhead has four high speed steel knives and turns at 5,000 RPM producing 20,000 cuts per minute. The anti-kickback fingers and pressure bar are located in close proximity to the cutterhead for an exceptional finish. The solid cast iron base, table and head are designed for production. The 2-speed oil bath gearbox transmits full power to feed rollers and facilitates fast speed changes at 24 and 31 FPM. The gearbox can be changed to 4-speed with the included gear to run lower speeds of 16 and 20 FPM. The corrugated infeed and fine groove outfeed rollers ensure a smooth feed. The precision ground and polished cast iron table rides on four steel columns giving it plenty of support for the larger workpiece. Heavy cast iron extension wings ensure a flat, smooth cut.
