201, 22" Planer, 7.5HP 1PH 230V

Regular price
$10,074.27
Sale price
$10,074.27
Regular price

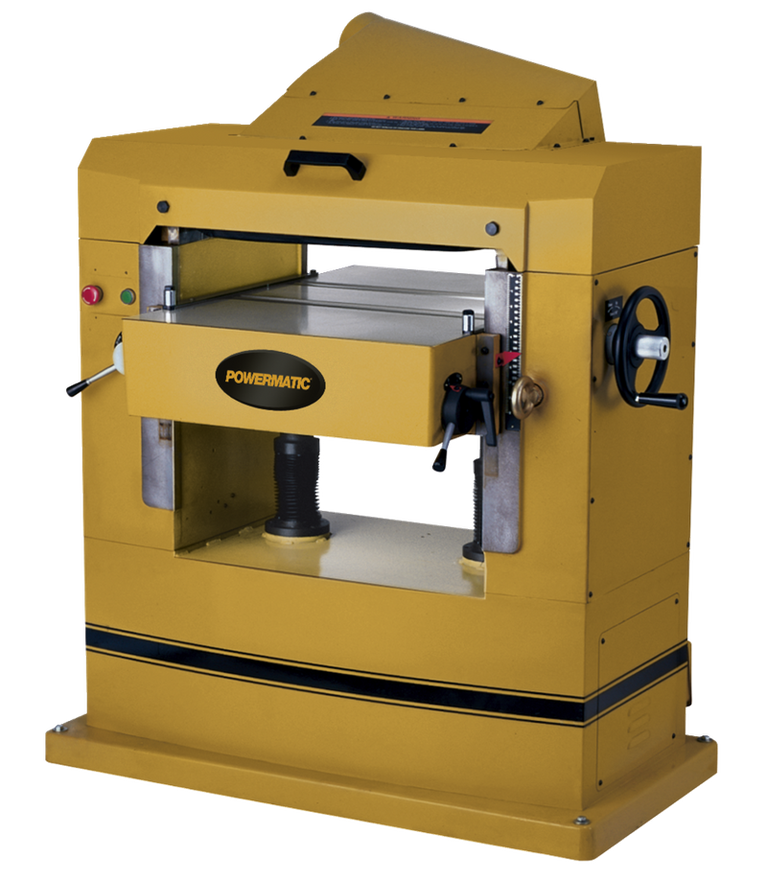

This 1,300 lb. heavy-duty cast iron Planer offers rock solid rigidity and accurate planing for years to come. The hinged top allows easy access to the rollers and knives. The...
21 people are viewing this right now
Type: Tools
Vendor:
Sku: PM9-1791261

AvailabilityLow stock 10 left

Shipping & Returns

Free shipping and returns available on all orders!
We ship all US domestic orders within 5-10 business days!

Materials

The item with the Committed label has a lower environmental impact because it was made with sustainable materials or methods. We are committed to creating items that combine sustainability with style. Made with recycled cashmere and industrial by products.

Size Chart

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

201, 22" Planer, 7.5HP 1PH 230V201, 22" Planer, 7.5HP 1PH 230V201, 22" Planer, 7.5HP 1PH 230V201, 22" Planer, 7.5HP 1PH 230V201, 22" Planer, 7.5HP 1PH 230V201, 22" Planer, 7.5HP 1PH 230V201, 22" Planer, 7.5HP 1PH 230V201, 22" Planer, 7.5HP 1PH 230V201, 22" Planer, 7.5HP 1PH 230V201, 22" Planer, 7.5HP 1PH 230V201, 22" Planer, 7.5HP 1PH 230V201, 22" Planer, 7.5HP 1PH 230V

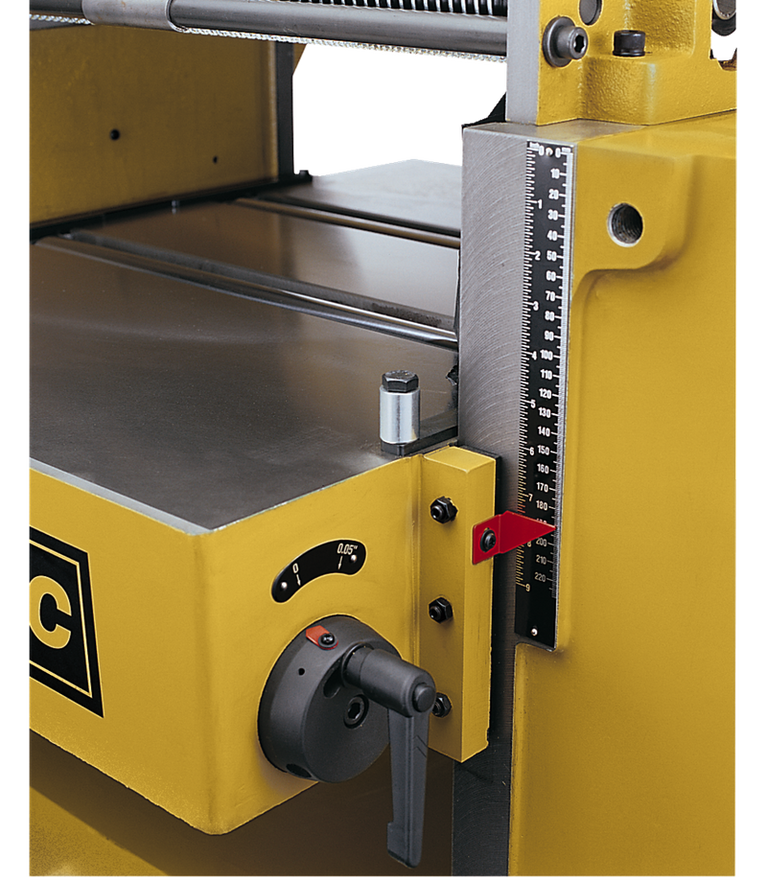

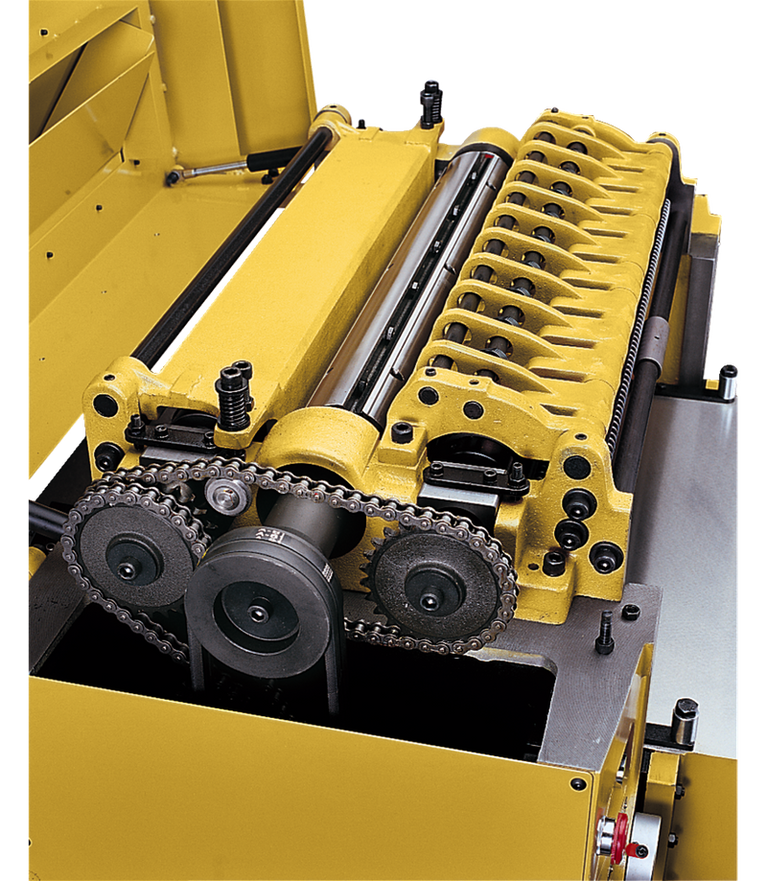

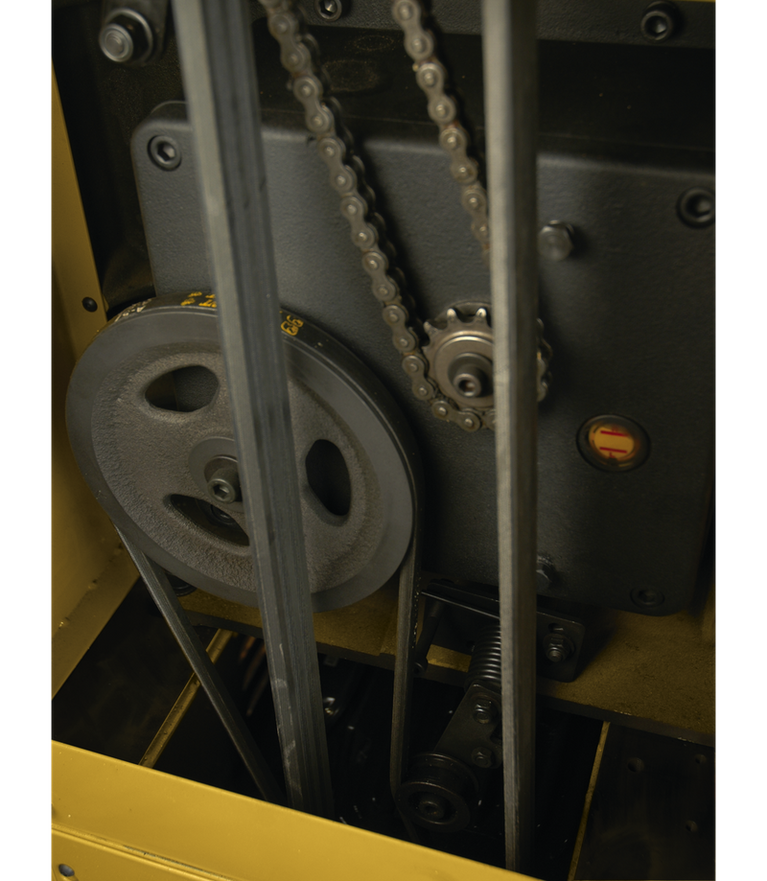

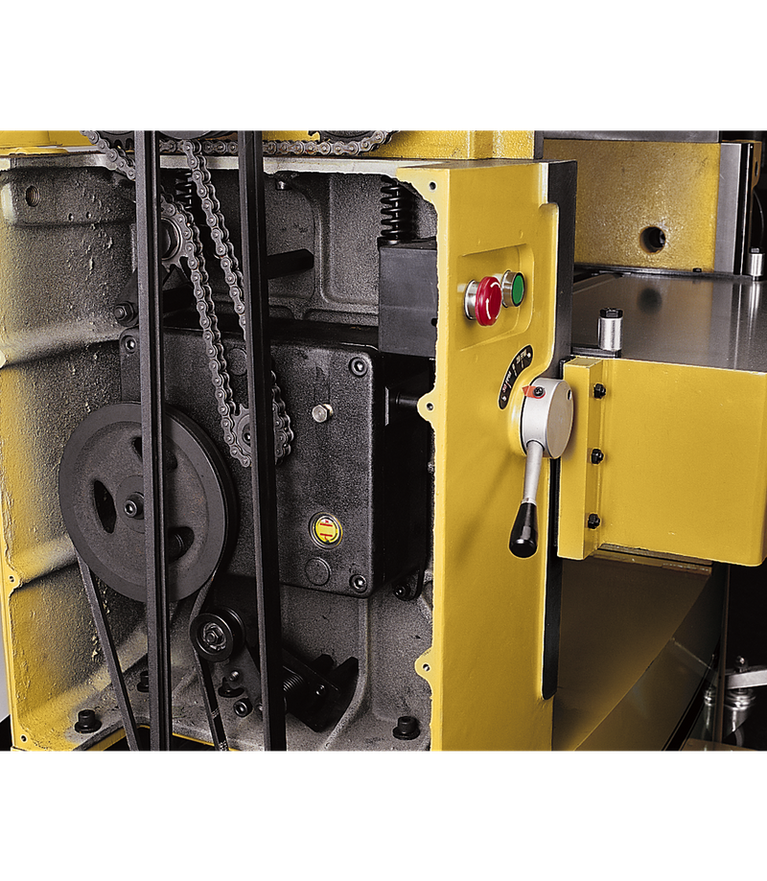

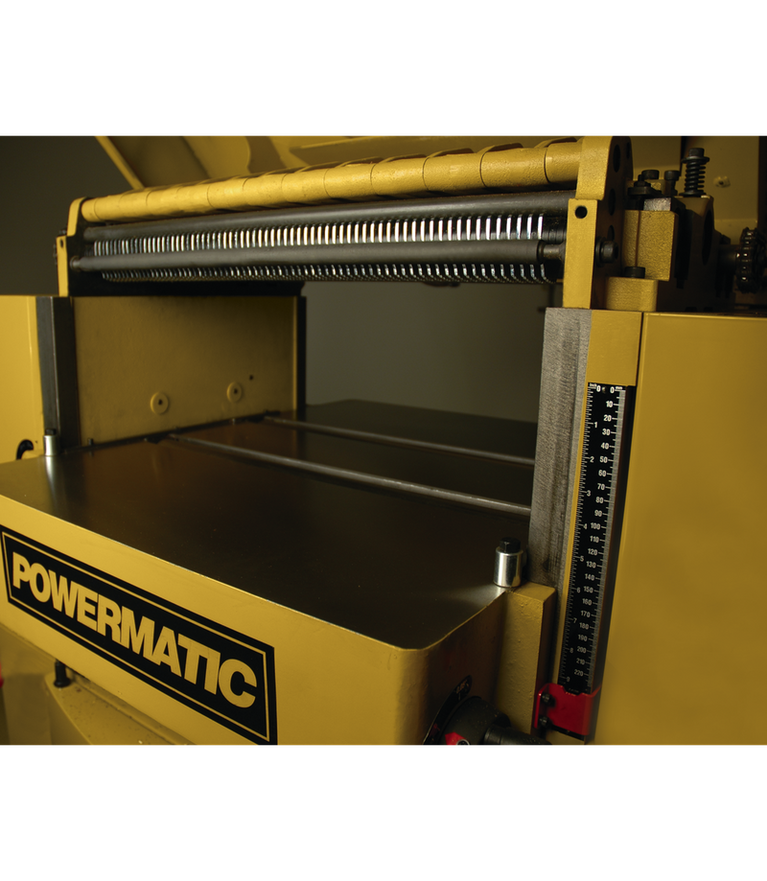

This 1,300 lb. heavy-duty cast iron Planer offers rock solid rigidity and accurate planing for years to come. The hinged top allows easy access to the rollers and knives. The hood comes standard with a 5" dust port for easy attachment to any dust collection system. The cutterhead is complete with four high speed steel knives and turns at 4,800 rpm producing 19,200 cuts per minute. The anti-kick back fingers and pressure bar are located in close proximity to the cutterhead for an exceptional finish. The well designed infeed and outfeed rollers are fitted with roller bearings for long roller life. The sectional infeed and chip breaker are specially designed to allow multiple boards to be planed at the same time. The adjustable bed roller facilitates both rough and finish planing. The solid steel outfeed roller is machined with small serrations to insure a smooth finish yet provide positive feeding. The two-speed gearbox with machined detents is quickly changed up front when switching from rough to finish work. You may easily raise the massive ribbed cast iron, ground finished table 1 /16 with each turn of the hand wheel. The model 201 is available with a 7-1 /2 horsepower, single-phase motor. This planer is perfect for the small to medium shop with continuous planing requirements.
